Brisa

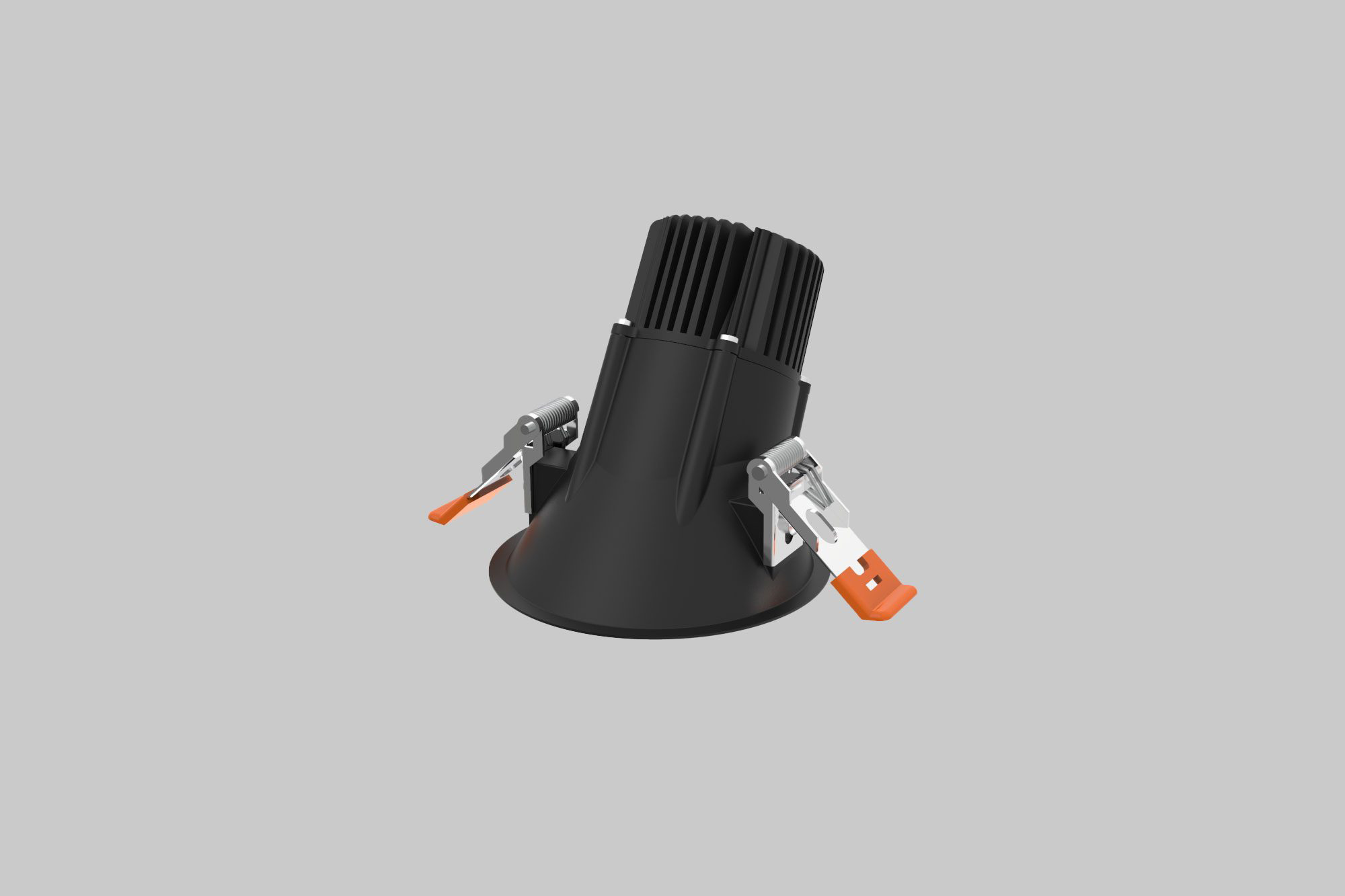

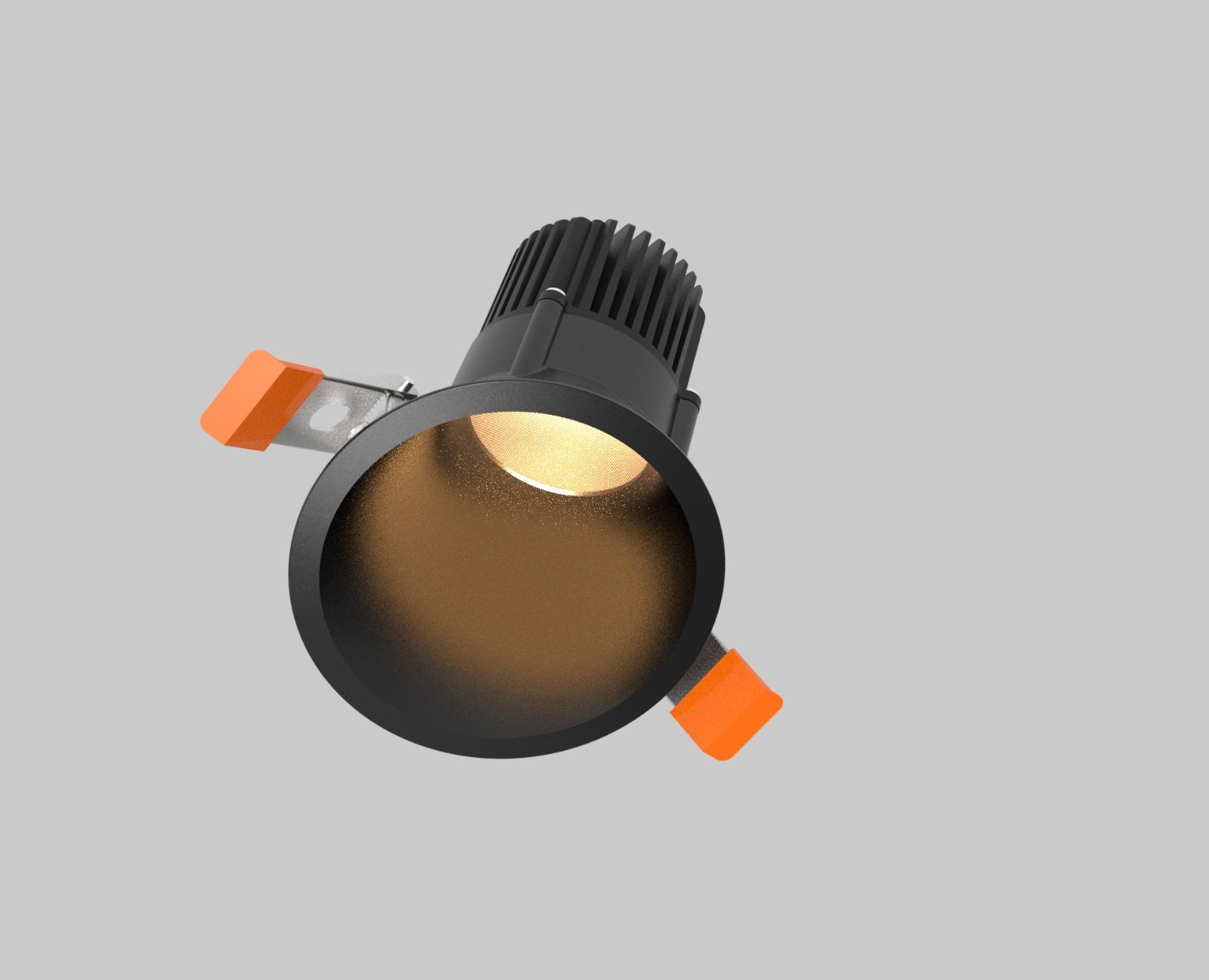

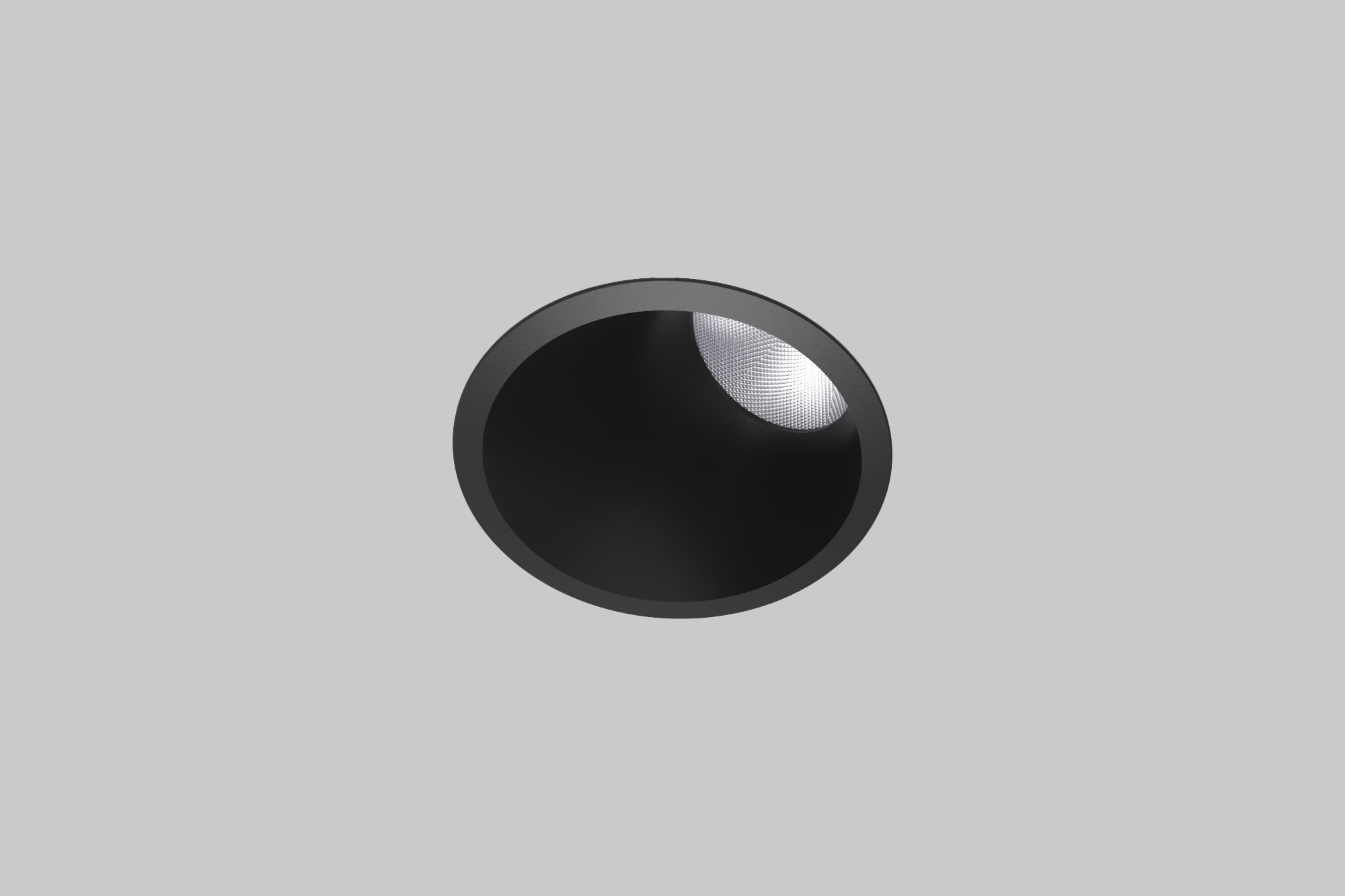

Brisa — product photo

Overview

Product family
Brisa
Product Name
Brisa

Technical details

Body
Die-cast aluminium body with electrostatic powder coated
Mounting Type
Recessed Mounted
Optic
High efficiency reflector and PC glass
Light Source
COB LED, 50.000 hours Led lifetime
Color Rendering Index
CRI>80,CRI>90
Power Factor
Pf>90
Operating Voltage
220-240V AC / 50-60 Hz
Control Type
On/Off – Dali
Color
White- Black- Gray- RAL
PowerColor TemperatureLight Beam AngleLumenLuminaire EfficiencySealingDimensionsWeightPDF
7 W2700-3000-4000-5000-6500K15°,24°,36°630 lm90lm/WIP20Ø100 x 100 mm0,42 Kg
9 W2700-3000-4000-5000-6500K15°,24°,36°810 lm90lm/WIP20Ø100 x 100 mm0,42 Kg
14 W2700-3000-4000-5000-6500K15°,24°,36°1260 lm90lm/WIP20Ø100 x 100 mm0,42 Kg
