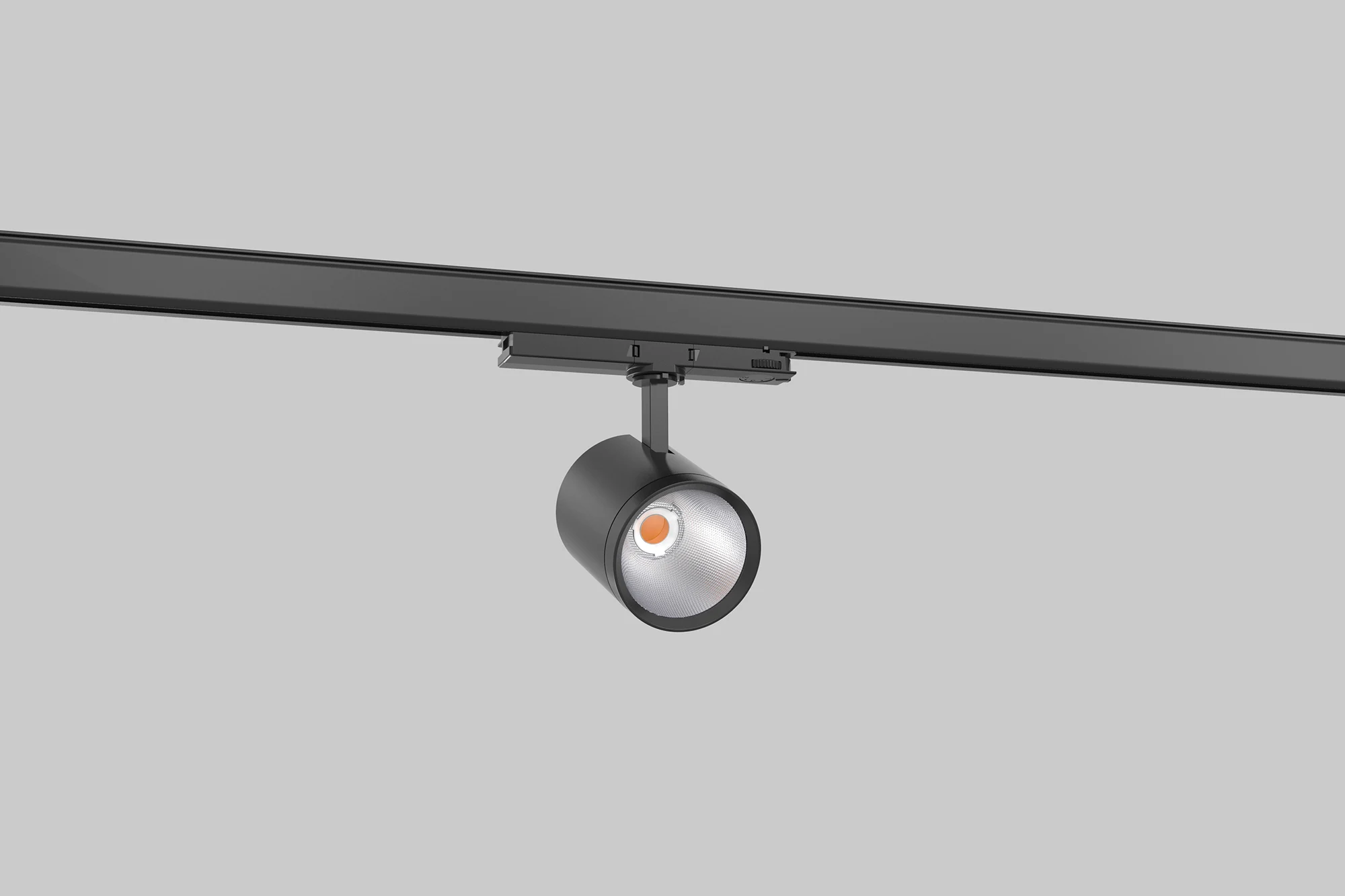

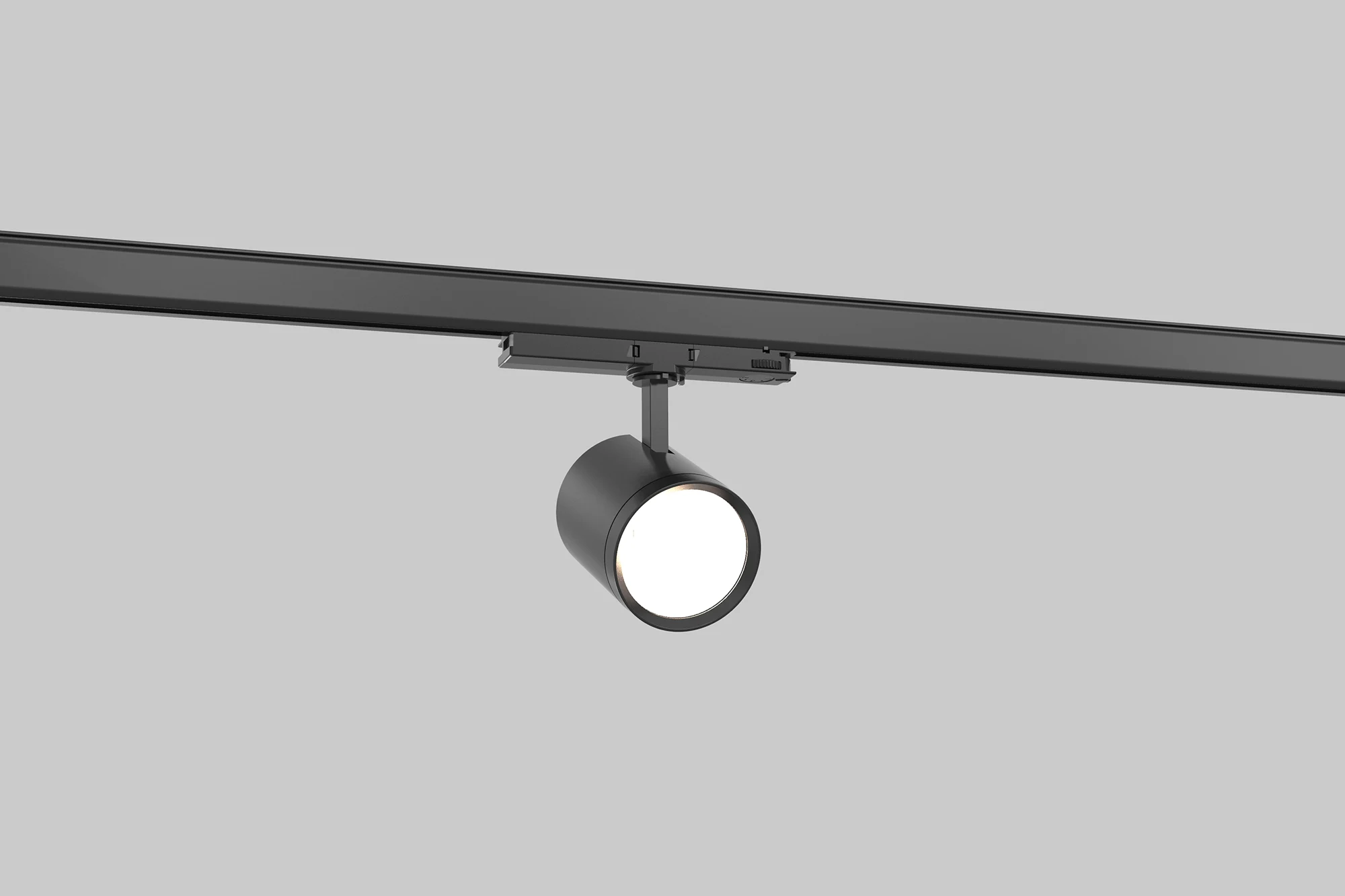

Elva - 85 Plus — product photo

Overview

Product family: Elva
Product Name: Elva - 85 Plus

Technical details

Body: Injection aluminium body with electrostatic powder coated
Mounting Type: Track
Optic: High efficiency reflector and PC glass
Light Source: COB LED, 50.000 hours Led lifetime
Color Rendering Index: CRI>90
Power Factor: Pf>90
Operating Voltage: 220-240V AC / 50-60 Hz
Control Type: On/Off- Dali
Color: White- Black- Gray- RAL

Power	Color Temperature	Light Beam Angle	Lumen	Luminaire Efficiency	Sealing	Dimensions	Weight	PDF
22 W	3000-3500-4000K	15°,24°,40°,60°	2926 Im - 2970 lm - 3080 lm	133Im/W, 135Im/W, 140Im/W	IP20	Ø85 X 102,5mm	0,62 Kg
24 W	3000-3500-4000K	15°,24°,40°,60°	3192 Im - 3240 lm - 3360 lm	133Im/W, 135Im/W, 140Im/W	IP20	Ø85 X 102,5mm	0,62 Kg
29,5 W	3000-3500-4000K	15°,24°,40°,60°	3924 Im - 3983 lm - 4130 lm	133Im/W, 135Im/W, 140Im/W	IP20	Ø85 X 102,5mm	0,62 Kg
