Elva - 85

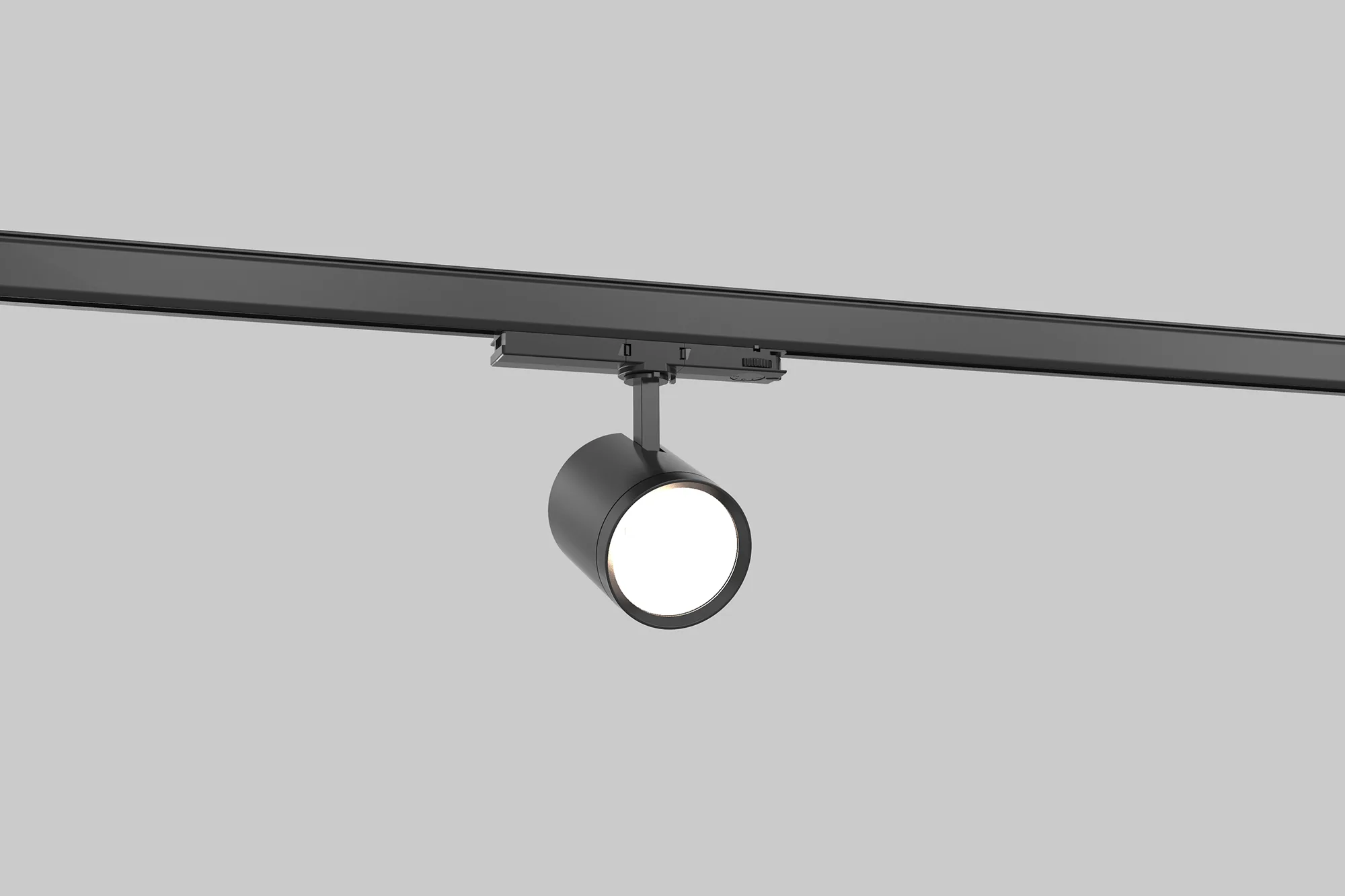

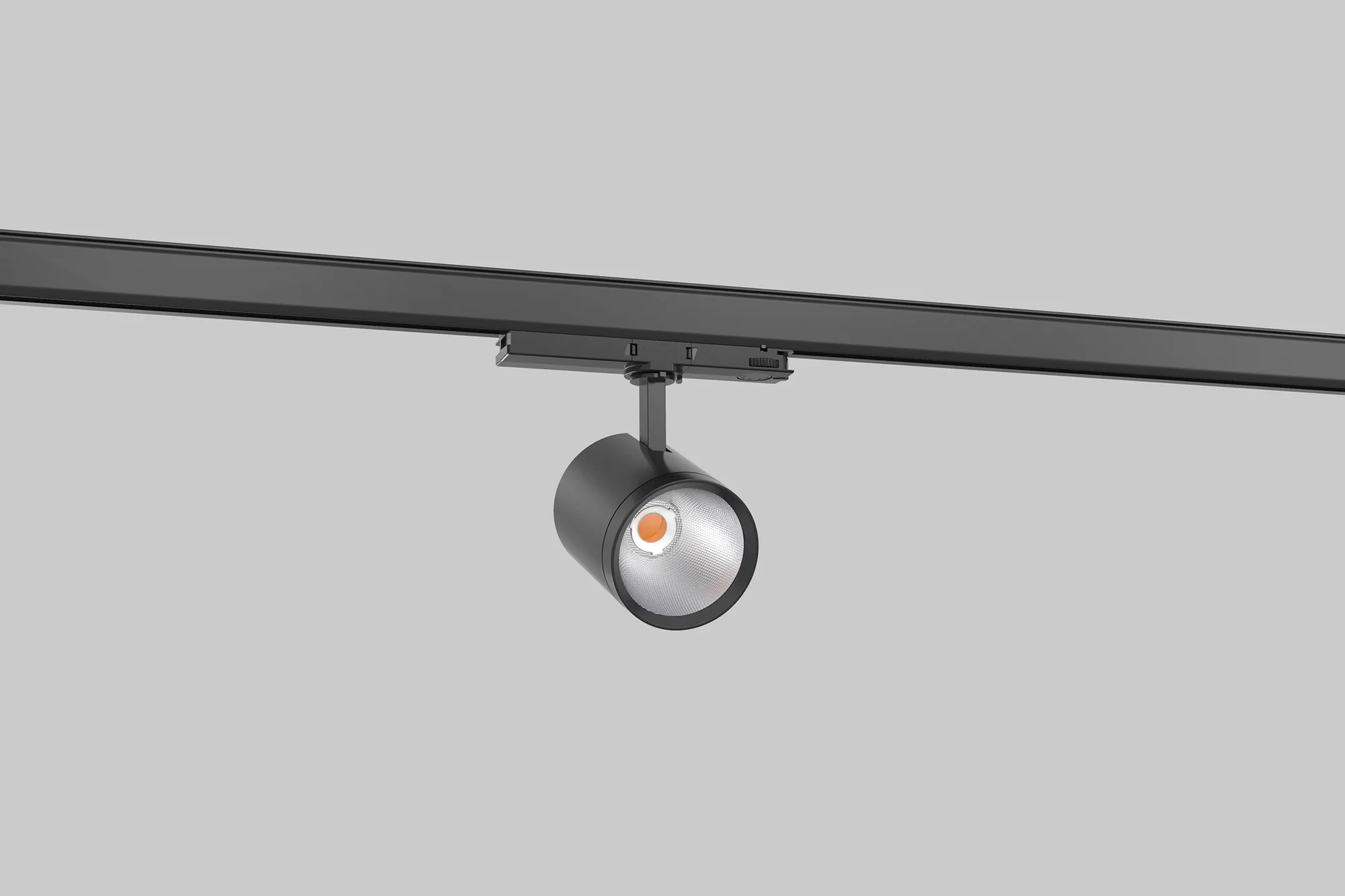

Elva - 85 — product photo

Overview

Product family: Elva
Product Name: Elva - 85

Technical details

Body: Injection aluminium body with electrostatic powder coated
Mounting Type: Track
Optic: High efficiency reflector and PC glass
Light Source: COB LED, 50.000 hours Led lifetime
Color Rendering Index: CRI>80 , CRI>90
Power Factor: Pf>90
Operating Voltage: 220-240V AC / 50-60 Hz
Control Type: On/Off- Dali
Color: White- Black- Gray- RAL

Power	Color Temperature	Light Beam Angle	Lumen	Luminaire Efficiency	Sealing	Dimensions	Weight	PDF
22 W	2700-3000-4000-5000-6500K	15°,24°,40°,60°	2310 Im	105 Im/W	IP20	Ø85 x 102,5 mm	0,62 Kg
24 W	2700-3000-4000-5000-6500K	15°,24°,40°,60°	2520 Im	105 Im/W	IP20	Ø85 x 102,5 mm	0,62 Kg
29,5 W	2700-3000-4000-5000-6500K	15°,24°,40°,60°	3098 Im	105 Im/W	IP20	Ø85 x 102,5 mm	0,62 Kg
