Onda 16 MP LB

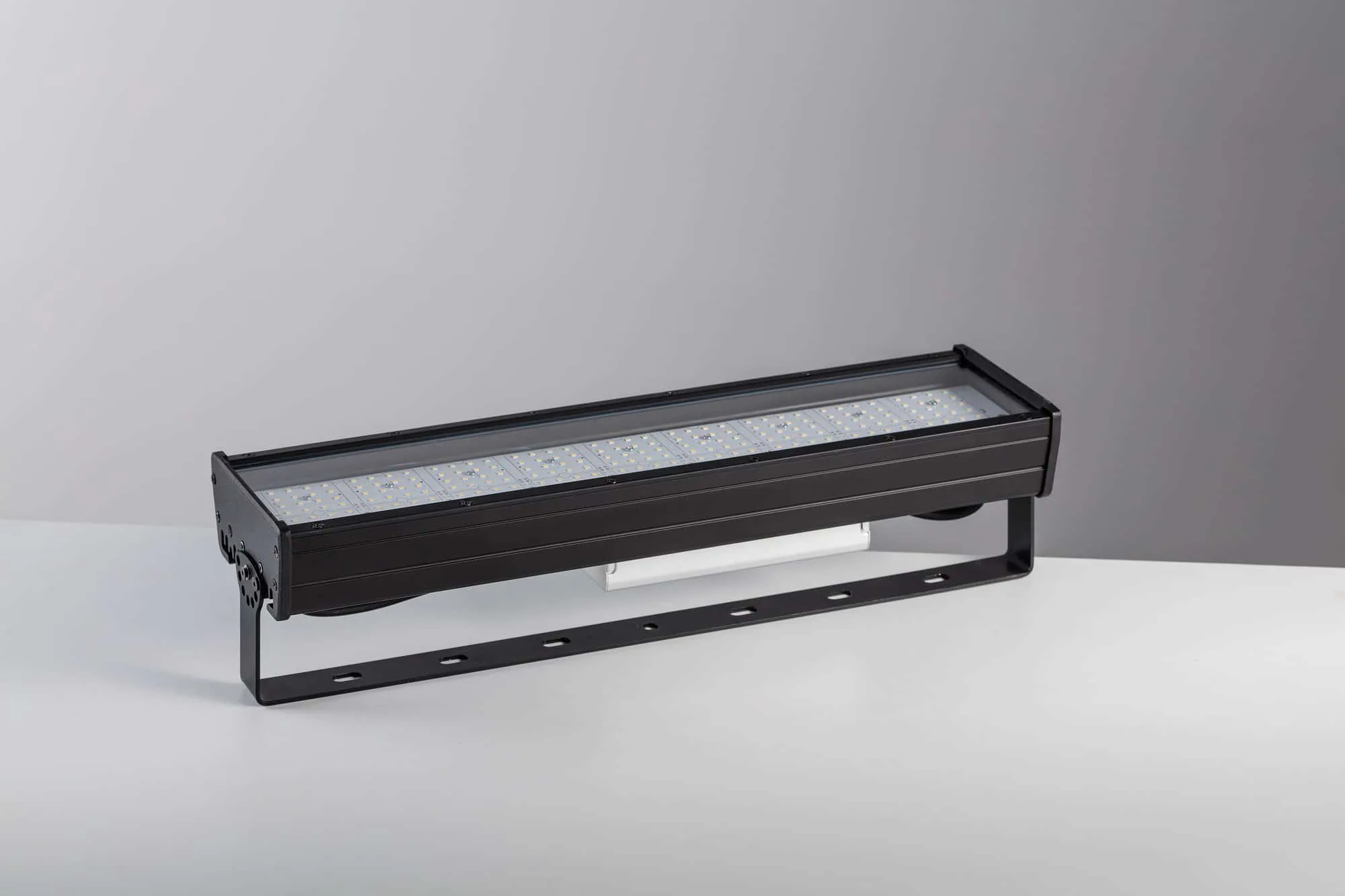

Onda 16 MP LB — product photo

Overview

Product family: Onda
Product Name: Onda 16 MP LB

Technical details

Body: Extruted aluminium body with electrostatic powder coated
Optic: High efficiency reflector and extra clear tempered glass

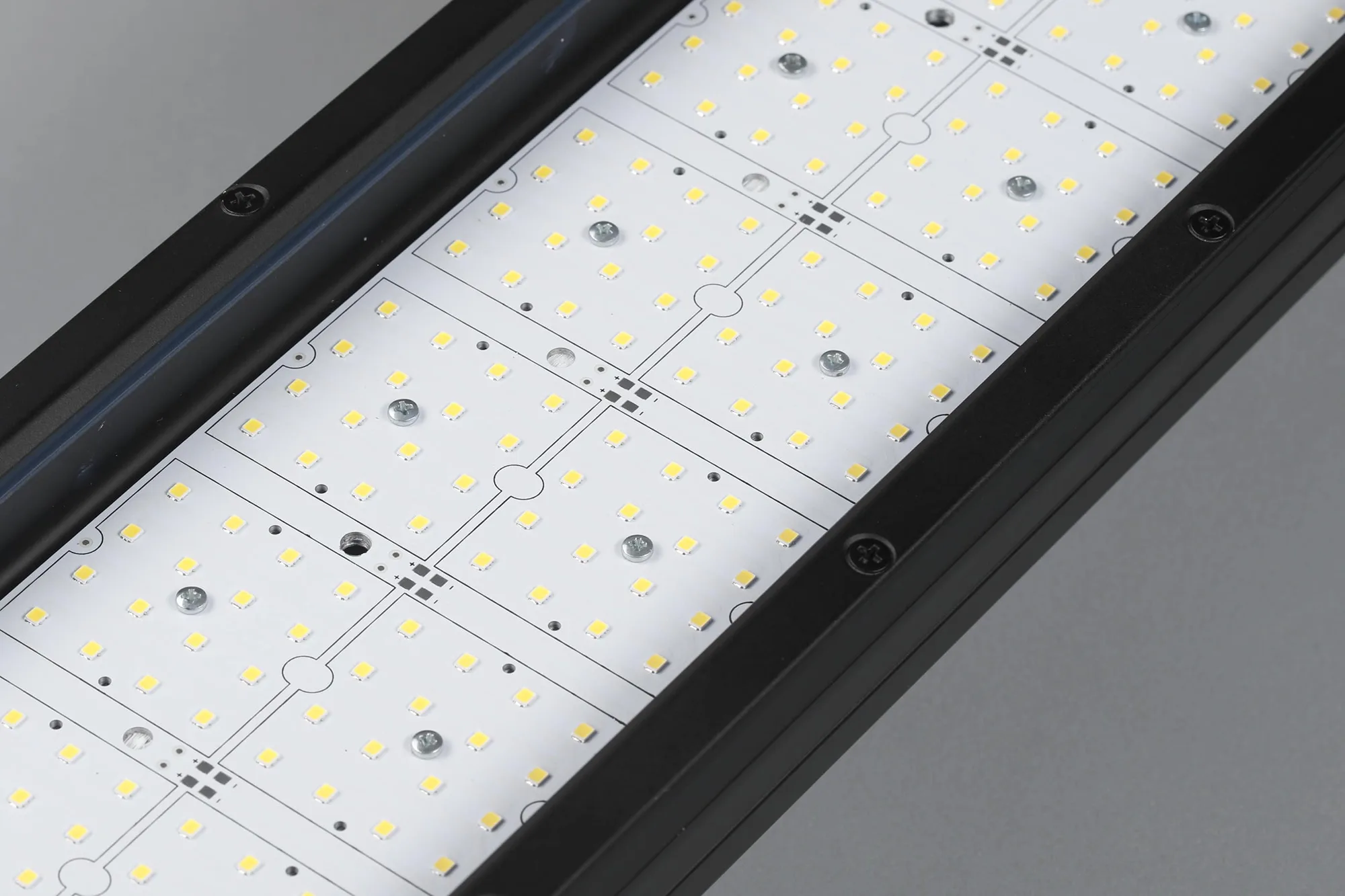

Light Source: MP LED, 50.000 hours Led lifetime
Color Rendering Index: CRI>80 , CRI>90
Power Factor: Pf>90
Operating Voltage: 220-240V AC / 50-60 Hz
Control Type: On/Off
Color: MAT Eloksal

Power	Color Temperature	Light Beam Angle	Lumen	Luminaire Efficiency	Sealing	Dimensions	Weight	PDF
55 W	2700-3000-4000-5000-6500K	120°	7480 lm	136lm/W	IP65	150 X 70 L: 250 mm	3,2 Kg
70 W	2700-3000-4000-5000-6500K	120°	9520 lm	136lm/W	IP65	150 X 70 L: 315 mm	3,8 Kg
110 W	2700-3000-4000-5000-6500K	120°	14960 lm	136lm/W	IP65	150 X 70 L: 490 mm	5,5 Kg
125 W	2700-3000-4000-5000-6500K	120°	17000 lm	136lm/W	IP65	150 X 70 L: 490 mm	5,5 Kg
145 W	2700-3000-4000-5000-6500K	120°	19720 lm	136lm/W	IP65	150 X 70 L: 560 mm	7,1 Kg
200 W	2700-3000-4000-5000-6500K	120°	27200 lm	136lm/W	IP65	150 X 70 L: 770 mm	7,6 Kg
